Common suction channel
A common suction channel runs inside the units. By plugging one of the suction ports we adapt multi-section pumps to a single, shared suction line.
We design and assemble gear pumps and motors of groups F, B and G — as single, double and triple section units. A common suction channel, full pressure field compensation and dozens of shaft, flange and port variants.
Made in Poland · SMB Hydro-Mar
Two meshing gears move the fluid around the housing. Precise axial and radial compensation maintains efficiency across the full range of operating pressures.
A common suction channel runs inside the units. By plugging one of the suction ports we adapt multi-section pumps to a single, shared suction line.
Compensating forces together with axial and radial sealing minimise internal leakage and keep volumetric efficiency high.
Front cover, working sections and end cover are combined into multi-pump assemblies — from a single pump up to triple-section units.
Group F as single, double and triple section units, group B as the second and third section, and group G — separately or in assemblies.

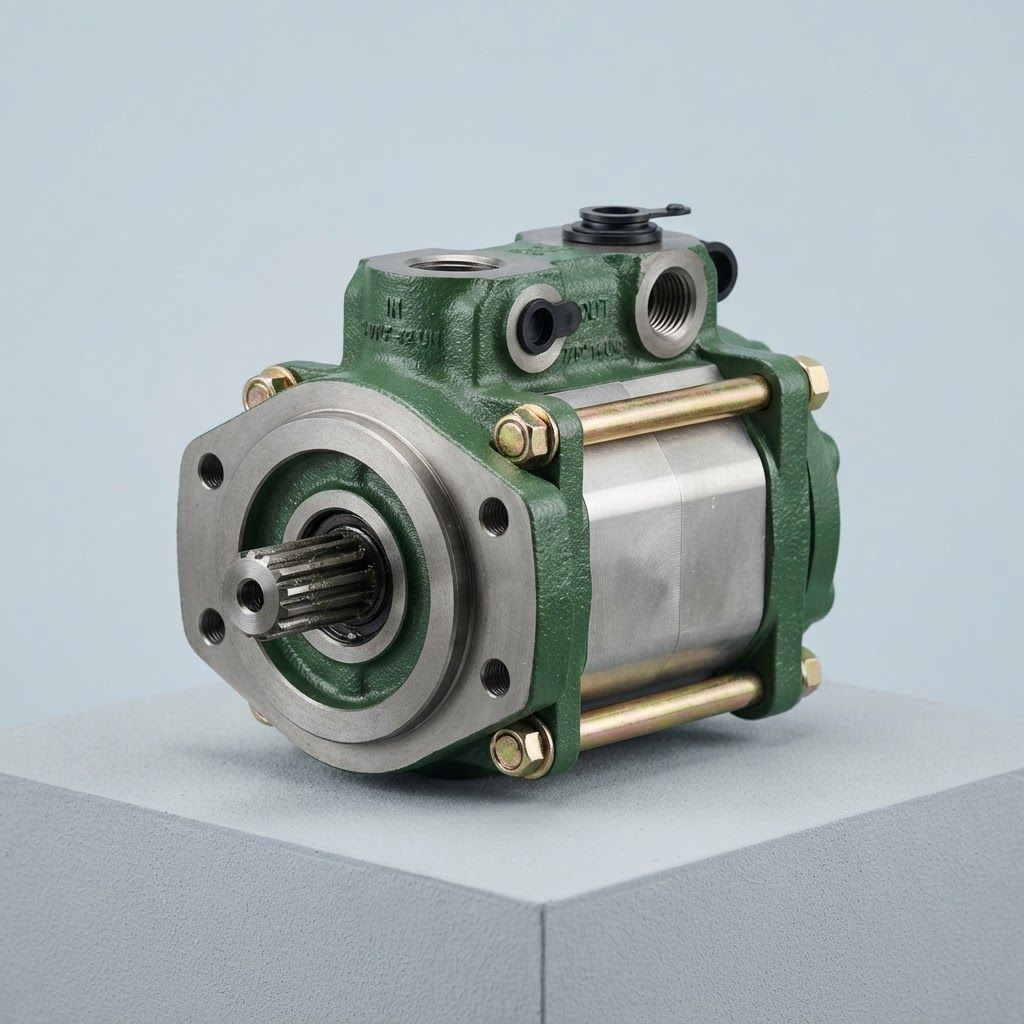

The base group of the assembly line. Single, double and triple section units.

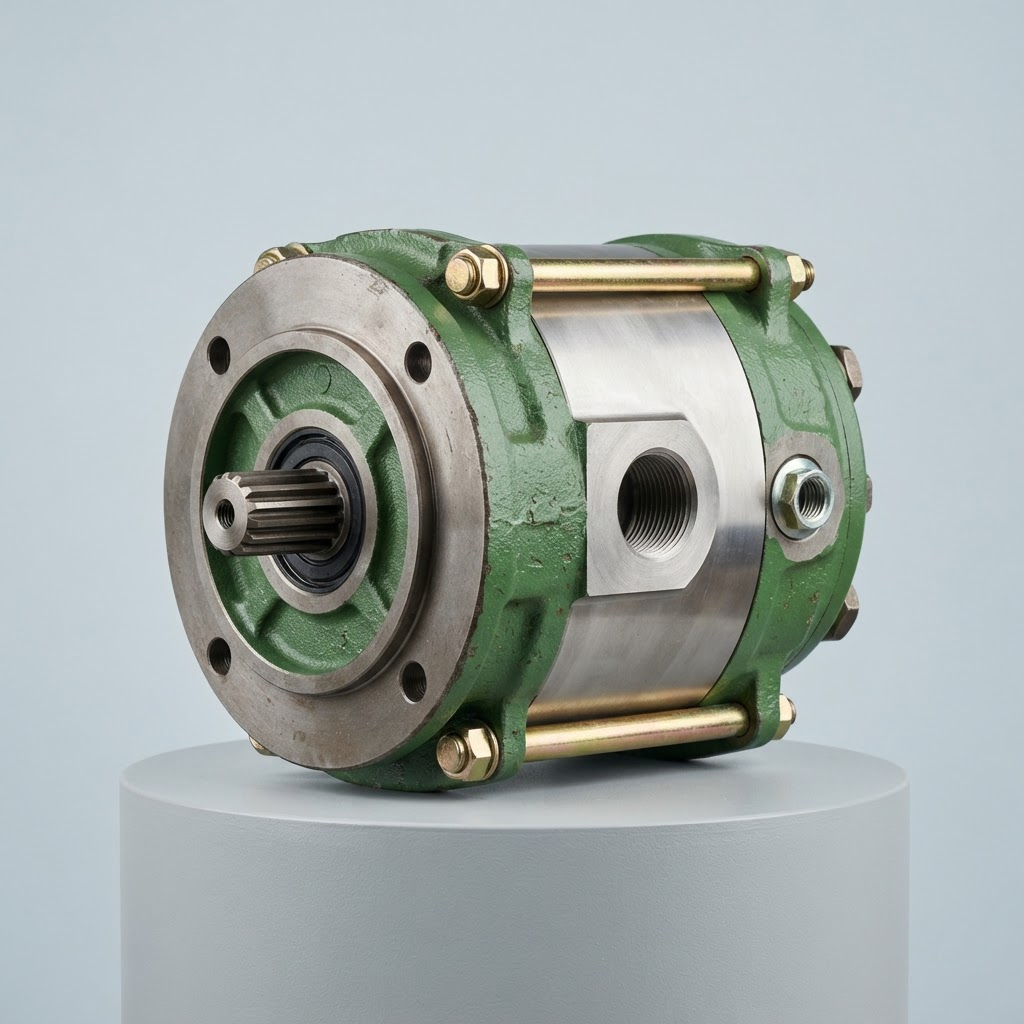

Higher displacements. Available as a separate unit or as part of 2- and 3-section assemblies.

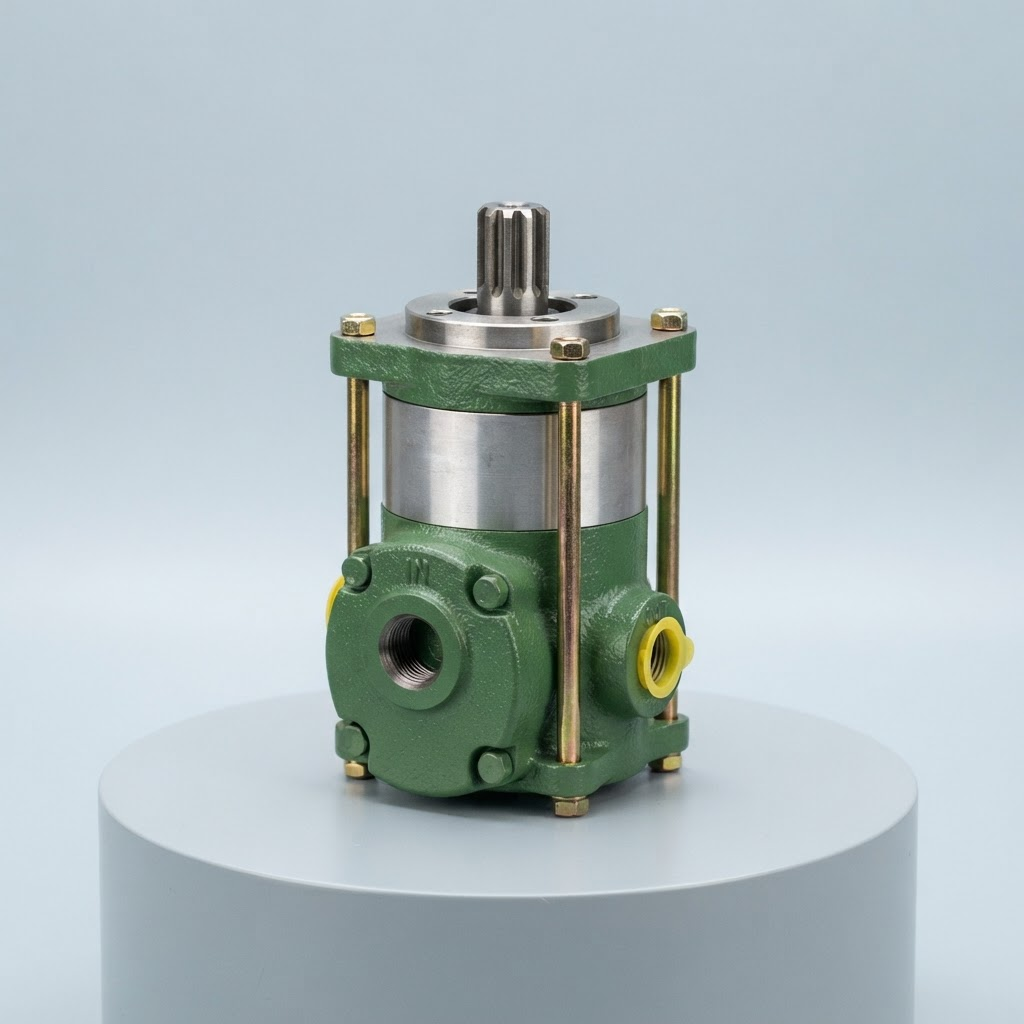

A compact group used as the second and third section of multi-pump units.
We combine the groups into ready double and triple section configurations:
Know the unit designation? Send it right away. If not — go through the configurator and the diagram on the right will update as you go.
We will select the configuration, build the pump to order and advise on installation.
